"Comparison colors" settings

For convenient recognition of differences in Visual Comparer each difference block is allocated with the certain color depending on type. You can adjust color of a background of each difference block as you wish. For this purpose there is a property page dialogue of " Comparison colors " options.

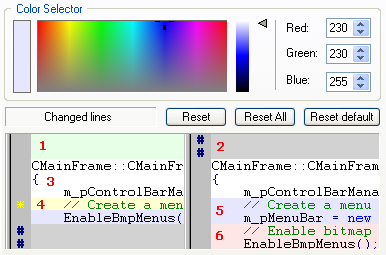

Dialogue consists from Color Selector to choose the color, interactive screenshot to choose a changeable difference block and keys of values reset. To change color of a necessary difference block you need simply click on it in required area of interactive screenshot. For example, to change color of Changed lines, make the following:

   - click on area with number "5";
   - choose the necessary color with help of Color Selector.

By change of colors for difference blocks we recommend to load any files for comparison. With color options you can observe all manipulations at once in Comparison Panes. It enables to choose desirable colors for difference blocks.

By unsufficient color choice there is an opportunity to restore the previous condition of a current or all difference blocks at once:
Reset - reset to previous condition of color value current in edited difference block;
Reset All - reset of color values of all difference blocks in the previous condition;
Reset defaults - reset of color values of all difference blocks in a by default established condition.
